Farazkavian Aircurtain products

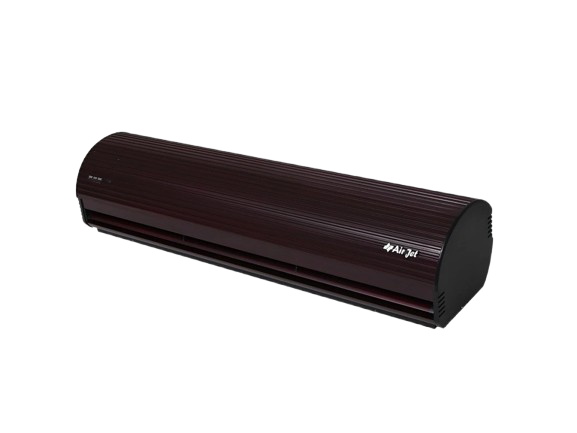

FM40/LY
Voltage: Single-phase 220V – 50HZ
Speed: Two-speed
Available in sizes: 60, 90, 100, 120, 150, 180, 200, 220, 240, 250, 270, 280, 300 centimeters
Remote control: Yes
Limit switch: Yes (for automatic operation of the device)

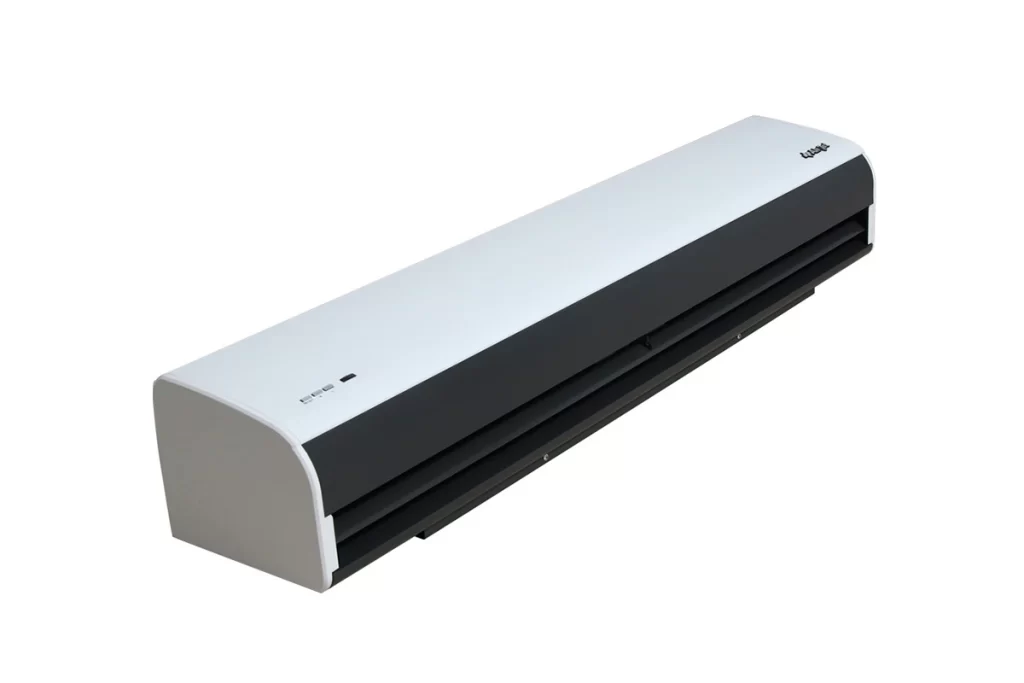

FM12T6G/Y
Voltage: Single-phase 220V – 50Hz
Speed: 2-speed
Available in sizes: 90 cm, 120 cm, 150 cm, 180 cm in length
Remote control: Yes
Limit switch: Yes (for automatic operation)
Adjustable with Foil A blade
RM40
Voltage: V220 – Hz 50
Speed : 2-Speed
Air curtain with warm air
Available in 5 sizes: 100, 120, 150, 180, and 200 cm length
Equipped with a remote control
Automatic start, synchronized with the opening and closing of the door
FM40CW/L
Single Phase: V220 – Hz 50
2-Speed
Available in 8 sizes: 90, 100, 120, 150, 180, 200, 220, 240 cm length
Equipped with a remote control and automatic limit switch
Suitable for the entrances of buildings with limited space above the door frame and those with suspended ceilings

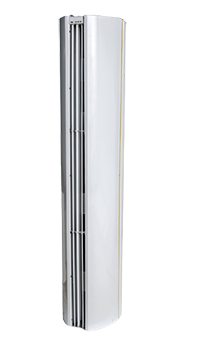

V-LUX
Voltage: Single Phase 220V – 50 Hz
Speed: Two-Speed
Size: 180-200 cm length
Remote Control: Yes
Limit Switch: Yes (for automatic operation)
HV-WSH-SEP
Voltage: Three Phase 380V
Motor Specifications: CLASS F – IP55
Size: 70-120 cm length
Operation: Automatic start, synchronized with door opening and closing
Farazkavian Cleanroom equipment products

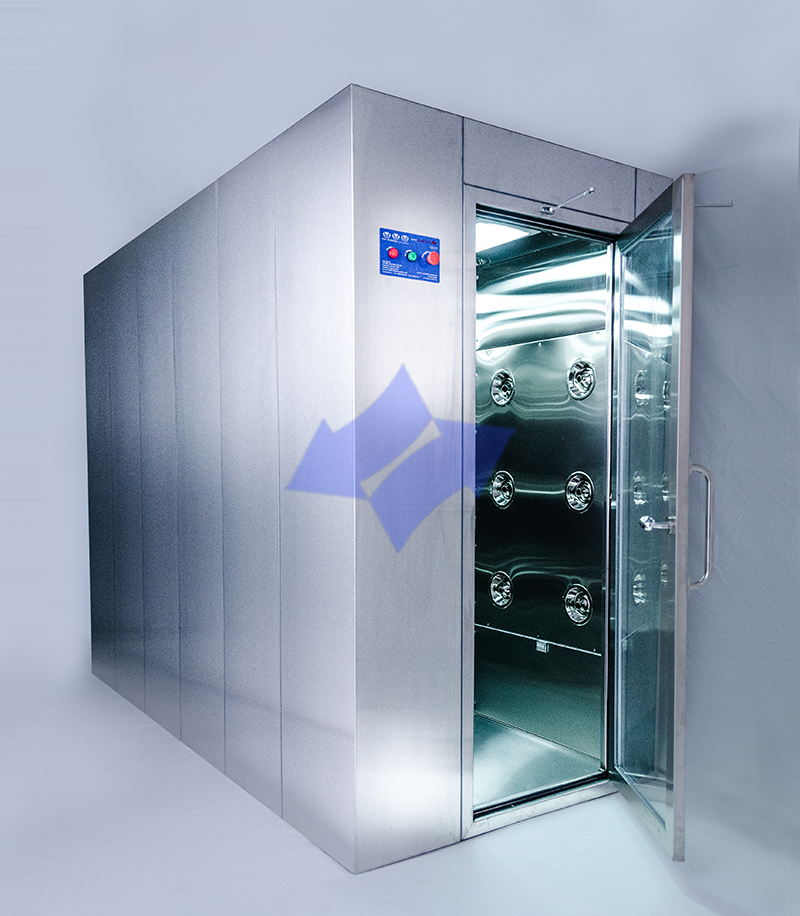

Airshower
External body made of steel with electrostatic paint coating or 304 stainless steel with a minimum thickness of 1 mm
Internal body made of 304 stainless steel with a minimum thickness of 1 mm
Equipped with a three-phase electric motor
Air spraying speed: 30 m/s
Equipped with a Siemens PLC control system and a 7-inch Delta HMI
Equipped with a safety switch
Equipped with LED lighting with a minimum of 18 watts and ≥500 lux
Equipped with 16 stainless steel air spray nozzles, each with a diameter of 1 inch
Passbox
It is one of the essential equipment for clean rooms and is used for the entry of raw materials, goods, items, and tools into the clean environment. Its installation helps improve the quality of production.
This device is available in two types: active and passive.
General applications: Industrial sectors, scientific laboratories, pharmaceutical industries, agriculture, and industries dealing with electronic components and sensitive, precise equipment.

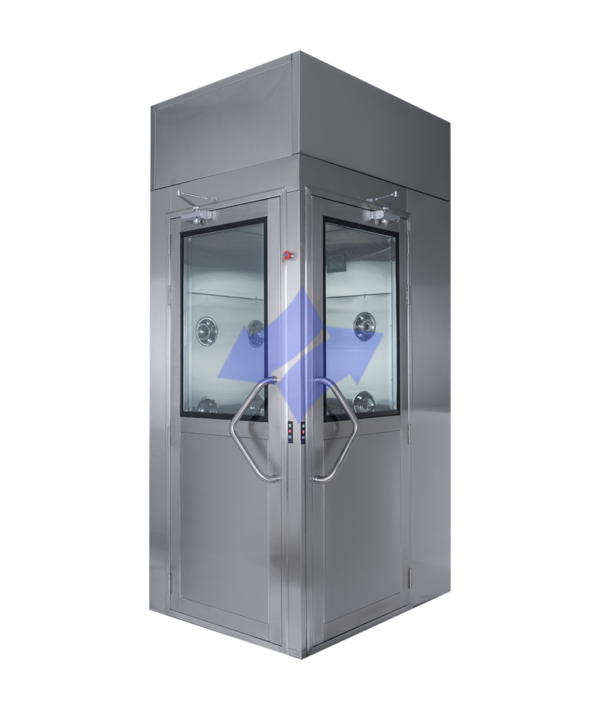

Mistshower
Entire body made of 304 stainless steel with a minimum thickness of 1 mm
Equipped with an explosion-proof European electric motor and electric pump
Equipped with a Siemens PLC control system and a 7-inch Delta HMI
Equipped with a safety switch
Equipped with LED lighting with a minimum of 18 watts and ≥500 lux
Equipped with 12 stainless steel nozzles for liquid spraying
Equipped with 16 stainless

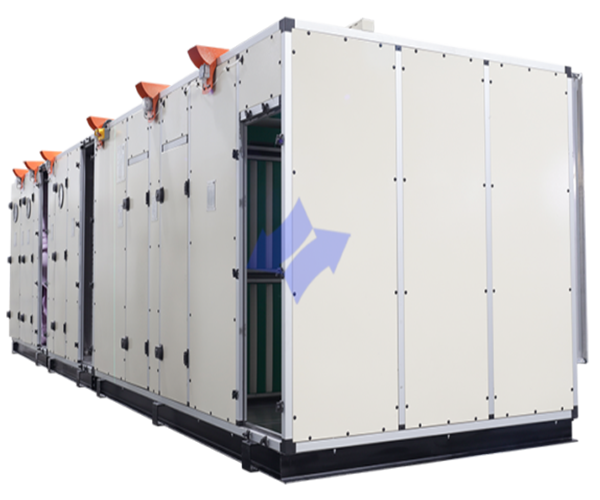

AHU
Air handling units are manufactured according to customer requirements for clean rooms in two types: hygienic and non-hygienic. Regarding the airflow configuration, they are available in two forms: full fresh air with return air and a proportion of fresh air, and they can be built in various capacities.
The air handling units are constructed in a fully enclosed structure with low leakage, consisting of mechanical and electronic equipment. Their duties include filtration, air circulation, positive pressure, and providing heating, cooling, and humidity control.

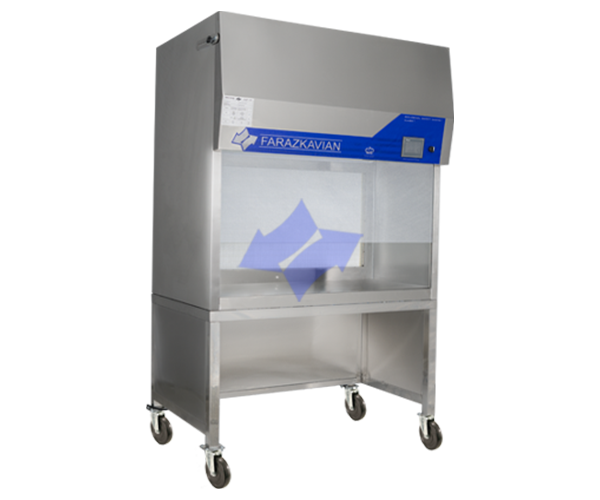

BSC
Body entirely made of 304 stainless steel with a minimum thickness of 1 mm
Sappali fan and variable exhaust speed with automatic adjustment
Equipped with Siemens PLC control system and Delta HMI
Includes earth leakage circuit breaker
LED lighting lamp with 80-watt power and more than 500 lux illumination
4G primary filter
HEPA Sappali filter and 14H exhaust filter by Olpatec

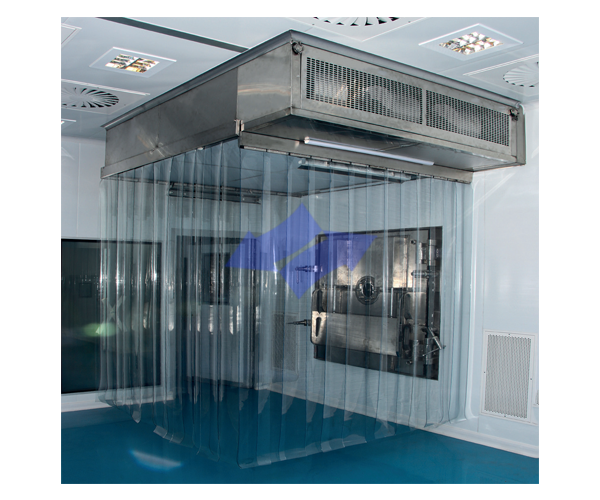

LAF
Achieving ultra-clean air at the level of Class A GMP -100, FED 209, ISO 5
Stainless steel frame and body
Equipped with an intelligent control system and differential pressure monitor
Includes alarm and structure suspended from above with PVC or glass curtains
Provides DQ-IQ-OQ documentation along with testing
